Presenting our Endura-Lite Square Columns
Sometimes the most beautiful solutions are the most simple. Endura-Lite square columns from Turncraft offer the classic beauty that homeowners and commercial property owners appreciate. Made from lightweight fiberglass, these columns are easy to cut, easy to install, and strong enough to carry heavy loads. Like other Endura columns, Endura-Lite columns are decay resistant and require little maintenance

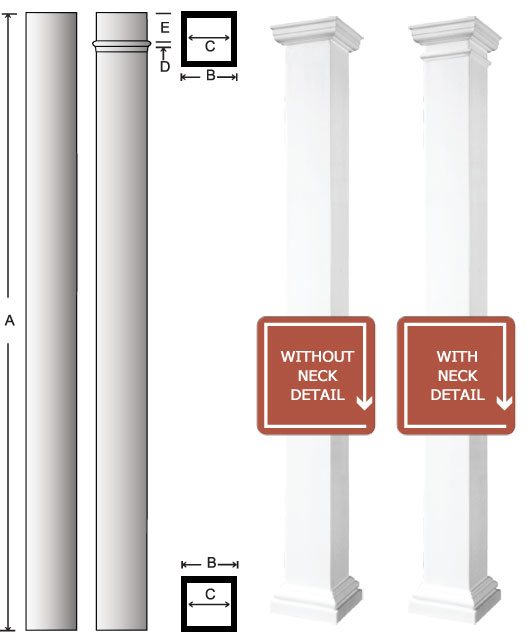

Endura-Lite™ Column Specifications
Our Endura-Lite Columns are a great way to easily support, or wrap existing posts. They are easy to cut and install, are low maintenance, impact resistant, and come to you ready to prime and paint.
|
|
Shaft Bottom |
Shaft Top |
|
|
|
Shaft Height |
Outside |
Inside |
Neck Height |
Astragal Ring |
Space Available Inside Shaft |
|
Nominal Width |
A |
B |
C |
E |
D |
Round |
Square |
Load Capacity |
8" | 6' | 7-5/8" | 7-1/8" | 4-1/2" | 3/4" | 6-3/4" | 6-3/4" | 5,000 |
8" | 8' | 7-5/8" | 7-1/8" | 4-1/2" | 3/4" | 6-3/4" | 6-3/4" | 5,000 |
8" | 9' | 7-5/8" | 7-1/8" | 4-1/2" | 3/4" | 6-3/4" | 6-3/4" | 5,000 |
8" | 10' | 7-5/8" | 7-1/8" | 4-1/2" | 3/4" | 6-3/4" | 6-3/4" | 5,000 |
8" | 12' | 7-5/8" | 7-1/8" | 4-1/2" | 3/4" | 6-3/4" | 6-3/4" | 5,000 |
10" | 6' | 9-5/8" | 9-1/8" | 5" | 3/4" | 8-3/4" | 8-3/4" | 6,000 |
10" | 8' | 9-5/8" | 9-1/8" | 5" | 3/4" | 8-3/4" | 8-3/4" | 6,000 |
10" | 9' | 9-5/8" | 9-1/8" | 5" | 3/4" | 8-3/4" | 8-3/4" | 6,000 |
10" | 10' | 9-5/8" | 9-1/8" | 5" | 3/4" | 8-3/4" | 8-3/4" | 6,000 |
10" | 12' | 9-5/8" | 9-1/8" | 5" | 3/4" | 8-3/4" | 8-3/4" | 6,000 |
12" | 6' | 11-5/8" | 11-1/8" | 5-1/2" | 3/4" | 10-3/4" | 10-3/4" | 7,000 |
12" | 8' | 11-5/8" | 11-1/8" | 5-1/2" | 3/4" | 10-3/4" | 10-3/4" | 7,000 |
12" | 9' | 11-5/8" | 11-1/8" | 5-1/2" | 3/4" | 10-3/4" | 10-3/4" | 7,000 |
12" | 10' | 11-5/8" | 11-1/8" | 5-1/2" | 3/4" | 10-3/4" | 10-3/4" | 7,000 |
12" | 12' | 11-5/8" | 11-1/8" | 5-1/2" | 3/4" | 10-3/4" | 10-3/4" | 7,000 |
16" | 8' | 15-7/8" | 15-1/8" | 7-5/8" | 1" | 14-3/4" | 14-3/4" | 20,000 |
16" | 10' | 15-7/8" | 15-1/8" | 7-5/8" | 1" | 14-3/4" | 14-3/4" | 20,000 |
16" | 12' | 15-7/8" | 15-1/8" | 7-5/8" | 1" | 14-3/4" | 14-3/4" | 20,000 |
16" | 14' | 15-7/8" | 15-1/8" | 7-5/8" | 1" | 14-3/4" | 14-3/4" | 20,000 |
16" | 16' | 15-7/8" | 15-1/8" | 7-5/8" | 1" | 14-3/4" | 14-3/4" | 20,000 |
16" | 18' | 15-7/8" | 15-1/8" | 7-5/8" | 1" | 14-3/4" | 14-3/4" | 20,000 |
16" | 20' | 15-7/8" | 15-1/8" | 7-5/8" | 1" | 14-3/4" | 14-3/4" | 20,000 |
|
|

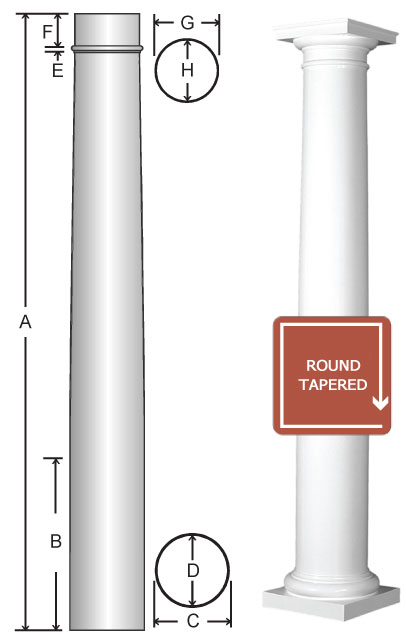

Shaft Bottom |
Shaft Top |
|
Shaft Neck |
|
|
|
Shaft Height |
Outside |
Inside |
Outside |
Inside |
Space Available Inside Shaft |
Neck Height |
Astragal Ring |
Straight Portion of Shaft |
|
Nominal Width |
A |
C |
D |
G |
H |
Round |
Square |
F |
E |
B |
Load Capacity |
30" | 8' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 0' | 25,000 |
30" | 10' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 0' | 25,000 |
30" | 12' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 0' | 25,000 |
30" | 14' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 0' | 25,000 |
30" | 16' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 0' | 25,000 |
30" | 18' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 1'-6" | 25,000 |
30" | 20' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 3'-6" | 25,000 |
30" | 22' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 5'-6" | 25,000 |
30" | 24' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 7'-6" | 25,000 |
30" | 26' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 9'-6" | 25,000 |
30" | 28' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 11'-6" | 25,000 |
30" | 30' | 30" | 29" | 24-1/2" | 23-1/2" | 23" | 16-1/4" | 13-5/8" | 2-1/2" | 13'-6" | 25,000 |
|
|

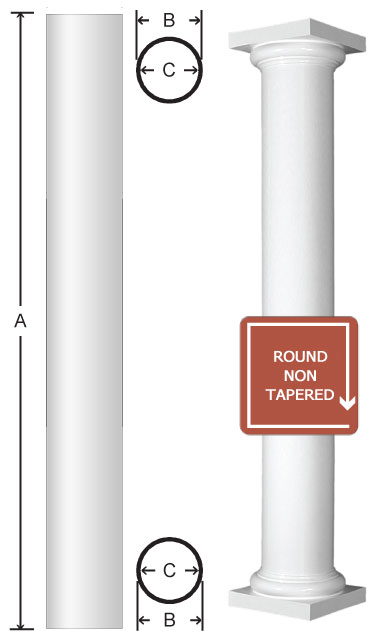

Shaft Bottom/Top |
|
|
|
Shaft Height |
Outside |
Inside |
Space Available Inside Shaft |
|
Nominal Width |
A |
B |
C |
Round |
Square |
Load Capacity |
30" | 8' | 30" | 29" | 28-1/2" | 20-1/8" | 25,000 |
30" | 10' | 30" | 29" | 28-1/2" | 20-1/8" | 25,000 |
30" | 12' | 30" | 29" | 28-1/2" | 20-1/8" | 25,000 |
30" | 14' | 30" | 29" | 28-1/2" | 20-1/8" | 25,000 |
30" | 15' | 30" | 29" | 28-1/2" | 20-1/8" | 25,000 |
Endura-Lite™ Column Capitals & Bases

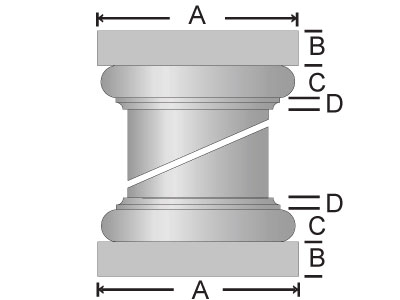

Square Non-Tapered Tuscan |
|
Tuscan Base |
Tuscan Capital |
|
Plinth |
Torus |
Total Height |
Echinus |
Abacus |
Total Height |
|
|
A |
B |
C |
D |
B-D |
E |
F |
G |
E-F |
Material |
8" | 10-9/16" | 1-3/4" | 1-5/8" | 1/2" | 3-7/8" | 1-5/16" | 1-3/8" | 10-11/16" | 2-11/16" | ABS |
10" | 12-9/16" | 1-3/4" | 1-5/8" | 1/2" | 3-7/8" | 1-5/16" | 1-3/8" | 12-11/16" | 2-11/16" | Pultruded FG |
12" | 17" | 2-3/4" | 2-3/8" | 7/8" | 6" | 1-7/8" | 2" | 17-1/4" | 3-7/8" | Polyurethane |
16" | 22-1/4" | 3-7/8" | 3-3/8" | 1-1/8" | 8-3/8" | 2-13/16" | 2-3/4" | 22-1/2" | 5-9/16" | Fiberglass |

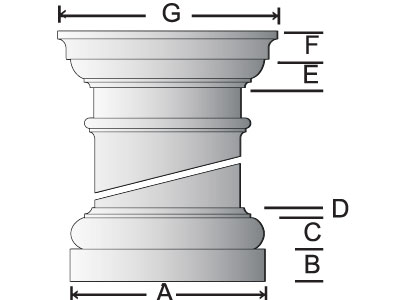

Round Tapered Tuscan |
|
Tuscan Base |
Tuscan Capital |
|
Plinth |
Torus |
Total Height |
Echinus |
Abacus |
Total Height |
|
|
A |
B |
C |
D |
B-D |
E |
F |
G |
E-F |
Material |
30" | 40-1/2" | 7-1/4" | 6-1/2" | 2-3/4" | 16-1/2" | 4-7/16" | 5-1/8" | 35-3/4" | 9-9/16" | Fiberglass |
Round Non-Tapered Tuscan |
|
Tuscan Base |
Tuscan Capital |
|
|
Plinth |
Torus |
Total Height |
Echinus |
Abacus |
Total Height |
|
|
A |
B |
C |
D |
B-D |
D |
C |
B |
A |
B-D |
Material |
30" | 40-1/2" | 7-1/4" | 6-1/2" | 2-3/4" | 16-1/2" | 2-3/4" | 6-1/2" | 7-1/4" | 40-1/2" | 16-1/2" | Fiberglass |

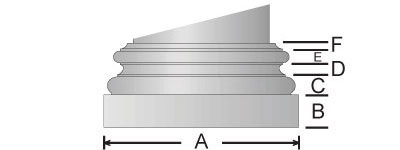

Attic Base |
|
Plinth |
Torus |
Total Height |
|
|
A |
B |
C |
D |
E |
F |
B-F |
Material |
30" | 40-1/2" | 7-1/4" | 3-7/8" | 3-5/8" | 2-5/8" | 1-7/8" | 19-1/4" | Fiberglass |
Endura-Lite™ Plan Types
Endura-Craft Columns are as unique as the different types of installations that are available. We offer our Endura-Craft Columns in a wide variety of "Plan Types". These "Plan Types" are the style and type of shaft, capital, and base you will receive. If you are using them as half columns against a wall, you would want to select an "F" plan type. This would give you a column that could be installed against a wall. These are the most common plan types, however, we can do custom plan types if your project requires it.
