EnduraStone™ Round Tapered Columns

Endura-Stone™ Tapered Columns

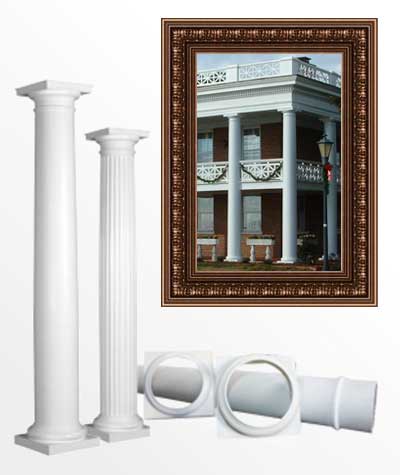

Presenting our Round Tapered Endura-Stone™ Columns

The Endura-Series™ Round Tapered Column is the column of choice among builders and home owners alike. This versatile column combines elegance and boldness to truly define exterior spaces. This Column also features a durable Endura-Stoneā„¢ construction that stands up to weathering and insects.

This simply styled column features just the right amount of detail for a crisp and architecturally rich appearance. We offer the Endura-Series™ Round Tapered Column in classical proportions for those in search of a historically accurate product. This column is inspired by the Doric and Tuscan columns of ancient Greek and Roman architecture. Like its ancient predecessors, it features a entasis (a slight bulge at the center of the column shaft), and a gracefully tapered form. Ancient architects believed that these elements combined to produce the most aesthetically effective and visually pleasing column. Today, their principles live on in the Endura-Series™ Round Tapered Column.

Endura-Series™ Round Tapered Columns are offered with both fluted and non-fluted shafts. For projects that require unique proportions, we also offer the round tapered column with custom width and height measurements, made exactly to your specifications for an ideal fit and appearance.

Round Tapered Column Shafts

Tuscan Columns are available in fluted or unfluted versions. They may be ordered in Vignola's architectural proportions or in custom combinations of column lengths and widths as well as in non-tapered cylinders. Square architectural columns and pilasters to match detail of round tapered columns are available.

Shaft Shaft Bottom Shaft Top Shaft Neck Straight Part Before
Height Outside Inside Outside Inside Will Wrap Neck Astragal Flute Unfluted Fluted Fluting
A C D H I Rd. Sq. G F Width B B E
6"5'5-11/16"4-3/4"4-13/16"3-3/4"3-3/8"2-1/2"3"1/2"1/2"23-1/16"**
6"6'5-11/16"4-3/4"4-13/16"3-3/4"3-3/8"2-1/2"3"1/2"1/2"35-1/16"**
6"8'5-11/16"4-3/4"4-13/16"3-3/4"3-3/8"2-1/2"3"1/2"1/2"59-1/16"**
8"5'7-5/8"6-3/4"6-19/32"5-1/2"5-1/8"3-1/2"4-1/4"1/2"11/16"14-1/16"**
8"6'7-5/8"6-3/4"6-19/32"5-1/2"5-1/8"3-1/2"4-1/4"1/2"11/16"26-1/16"**
8"8'7-5/8"6-3/4"6-19/32"5-1/2"5-1/8"3-1/2"4-1/4"1/2"11/16"50-1/16"50"9-3/4"
8"9'7-5/8"6-3/4"6-19/32"5-1/2"5-1/8"3-1/2"4-1/4"1/2"11/16"62-1/16"54"9-3/4"
8"10'7-5/8"6-3/4"6-19/32"5-1/2"5-1/8"3-1/2"4-1/4"1/2"11/16"72-1/16"65"9-3/4"
10"4'9-11/16"8-3/8"8-9/16"7-3/4"7-3/8"4-7/8"5-1/8"3/4"7/8"0"**
10"5'9-11/16"8-3/8"8-9/16"7-3/4"7-3/8"4-7/8"5-1/8"3/4"7/8"0"**
10"6'9-11/16"8-3/8"8-9/16"7-3/4"7-3/8"4-7/8"5-1/8"3/4"7/8"10-11/16"**
10"8'9-11/16"8-3/8"8-9/16"7-3/4"7-3/8"4-7/8"5-1/8"3/4"7/8"34-11/16"39"10-1/4"
10"9'9-11/16"8-3/8"8-9/16"7-3/4"7-3/8"4-7/8"5-1/8"3/4"7/8"46-11/16"56"10-1/4"
10"10'9-11/16"8-3/8"8-9/16"7-3/4"7-3/8"4-7/8"5-1/8"3/4"7/8"58-11/16"65"10-1/2"
10"12'9-11/16"8-3/8"8-9/16"7-3/4"7-3/8"4-7/8"5-1/8"3/4"7/8"82-11/16"89"10-1/2"
12"5'11-5/8"10-3/4"10-1/16"9-1/4"8-7/8"6"4-3/4"3/4"1"0"**
12"6'11-5/8"10-3/4"10-1/16"9-1/4"8-7/8"6"4-3/4"3/4"1"8-3/4"**
12"8'11-5/8"10-3/4"10-1/16"9-1/4"8-7/8"6"4-3/4"3/4"1"32-3/4"42-3/4"11-1/4"
12"9'11-5/8"10-3/4"10-1/16"9-1/4"8-7/8"6"4-3/4"3/4"1"44-3/4"49"11-1/4"
12"10'11-5/8"10-3/4"10-1/16"9-1/4"8-7/8"6"4-3/4"3/4"1"56-3/4"53"11-1/4"
12"12'11-5/8"10-3/4"10-1/16"9-1/4"8-7/8"6"4-3/4"3/4"1"80-3/4"60"11-3/8"
12"14'11-5/8"10-3/4"10-1/16"9-1/4"8-7/8"6"4-3/4"3/4"1"62"**
12"16'11-5/8"10-3/4"10-1/16"9-1/4"8-7/8"6"4-3/4"3/4"1"86"87"11-3/8"
14"8'13-1/2"11-1/2"11-9/16"10-1/2"10-1/8"6-3/8"6-3/4"1"1-1/4"33-1/4"**
14"9'13-1/2"11-1/2"11-9/16"10-1/2"10-1/8"6-3/8"6-3/4"1"1-1/4"45-1/4"**
14"10'13-1/2"11-1/2"11-9/16"10-1/2"10-1/8"6-3/8"6-3/4"1"1-1/4"57-1/4"**
14"12'13-1/2"11-1/2"11-9/16"10-1/2"10-1/8"6-3/8"6-3/4"1"1-1/4"81-1/4"**
14"14'13-1/2"11-1/2"11-9/16"10-1/2"10-1/8"6-3/8"6-3/4"1"1-1/4"57-1/4"**
14"16'13-1/2"11-1/2"11-9/16"10-1/2"10-1/8"6-3/8"6-3/4"1"1-1/4"81-1/4"**
14"18'13-1/2"11-1/2"11-9/16"10-1/2"10-1/8"6-3/8"6-3/4"1"1-1/4"105-1/4"**
14"20'13-1/2"11-1/2"11-9/16"10-1/2"10-1/8"6-3/8"6-3/4"1"1-1/4"129-1/4"**
16"5'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"16-1/4"**
16"6'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"28-1/4"**
16"8'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"18-1/2"**
16"9'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"30-1/2"**
16"10'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"42-1/2"**
16"12'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"66-1/2"**
16"14'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"27-1/4"**
16"16'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"51-1/4"**
16"18'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"75-1/4"**
16"20'15-7/16"13-1/2"13-1/8"12"11-5/8"7-3/8"7-3/8"1"1-7/16"99-1/4"**
18"8'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"13-3/8"**
18"9'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"25-3/8"**
18"10'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"37-3/8"**
18"12'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"61-3/8"**
18"14'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"85-3/8"**
18"16'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"26-1/8"**
18"18'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"50-1/8"**
18"20'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"74-1/8"**
18"22'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"98-1/8"**
18"24'17-3/8"15"14-5/16"12-3/4"12-3/8"8-1/4"7-7/8"1"1-1/2"122-1/8"**
20"6'19-3/8"18"16-5/16"14-7/8"14-1/2"10"9-3/16"1-3/8"1-11/16"0"**
20"8'19-3/8"18"16-5/16"14-7/8"14-1/2"10"9-3/16"1-3/8"1-11/16"22-1/4"**
20"10'19-3/8"18"16-5/16"14-7/8"14-1/2"10"9-3/16"1-3/8"1-11/16"46-1/4"**
20"12'19-3/8"18"16-5/16"14-7/8"14-1/2"10"9-3/16"1-3/8"1-11/16"70-1/4"**
20"14'19-3/8"18"16-5/16"14-7/8"14-1/2"10"9-3/16"1-3/8"1-11/16"40-3/8"**
20"16'19-3/8"18"16-5/16"14-7/8"14-1/2"10"9-3/16"1-3/8"1-11/16"64-3/8"**
20"18'19-3/8"18"16-5/16"14-7/8"14-1/2"10"9-3/16"1-3/8"1-11/16"88-3/8"**
20"20'19-3/8"18"16-5/16"14-7/8"14-1/2"10"9-3/16"1-3/8"1-11/16"112-3/8"**
24"8'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"8"**
24"10'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"32"**
24"12'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"56"**
24"14'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"24-13/16"**
24"16'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"48-13/16"**
24"18'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"72-13/16"**
24"20'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"96-13/16"**
24"22'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"120-13/16"**
24"24'23-3/8"22"19-5/16"18"17-5/8"12-1/8"12"1-5/8"2-1/8"144-13/16"**

What size post will my column wrap?

*Adding Ornamental Caps will change the post size that can be wrapped. Please check with your consultant for details.

Tapered* Non-Tapered* Non-Tapered Square*
Inside Round Inside Square Inside Round Inside Square Inside Round Inside Square
6"3-3/8"2-1/2"n/an/a4-1/2"4-1/2"
8"5-1/8"3-1/2"6-3/8"4-1/2"5-1/2"5-1/2"
10"7-3/8"4-7/8"8"5-5/8"8-1/2"8-1/2"
12"8-7/8"6"10-3/8"7-1/4"10-1/2"10-1/2"
14"10-1/8"6-3/8"11-1/8"7-7/8"12-1/2"12-1/2"
16"11-5/8"7-3/8"13"9-1/8"n/an/a
18"12-3/8"8-1/4"14-1/2"10-1/4"n/an/a
20"14-1/2"10"16-1/2"11-5/8"n/an/a
24"17-5/8"12-1/8"19-1/2"13-3/4"n/an/a

Endura-Stone™ Tapered Capitals & Bases

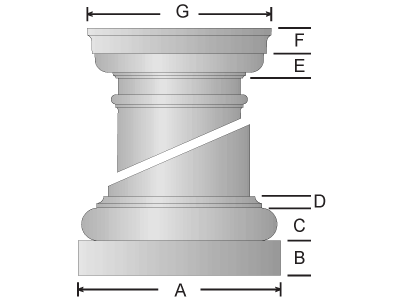

Tuscan Capital & Base

Tuscan Base Tuscan Capital
Plinth Torus Total Echinus Abacus Total
A B C D B-D E F G E-F
6"8"1-1/2"1-1/4"1/2"3-1/4"1"11/16"7-1/2"2-1/16"
8"10-7/8"1-7/8"1-3/4"5/8"4-1/4"1-5/16"1-3/8"9-7/8"2-11/16"
10"13-1/2"2-3/8"2-1/8"3/4"5-1/4"1-13/16"1-3/4"12-1/8"3-9/16"
12"16-1/4"2-3/4"2-3/8"7/8"6"1-7/8"2"14-5/8"3-7/8"
14"18-5/8"3-5/16"3"1"7-5/16"2-1/2"2-5/16"17"4-15/16"
16"21-5/16"3-7/8"3-3/8"1-1/8"8-5/16"2-3/4"2-11/16"19-1/8"5-7/16"
18"24"4-3/16"4"1-3/8"9-9/16"3"2-15/16"21-5/16"5-15/16"
20"27"4-3/4"4-1/16"1-3/4"10-9/16"3-1/8"3-7/16"24-1/4"6-9/16"
24"32-1/2"5-3/4"5-1/4"2-1/4"13-1/4"3-5/16"4-1/8"28-3/4"7-7/16"

Tuscan Capital & Attic Base

Attic Base Tuscan Capital
Plinth Torus Total Echinus Abacus Total
A B C D E F B-F E F G E-F
6"8"1"3/4"3/4"1/2"1/2"3-1/2"1"11/16"7-1/2"2-1/16"
8"10-7/8"1-7/8"1-1/8"7/8"3/4"1/2"5-1/8"1-5/16"1-3/8"9-7/8"2-11/16"
10"13-1/2"2-3/8"1-1/4"1-1/8"7/8"5/8"6-1/4"1-13/16"1-3/4"12-1/8"3-9/16"
12"16-1/8"2-3/4"1-1/2"1-3/8"1"5/8"7-1/4"1-7/8"2"14-5/8"3-7/8"
14"18-1/2"3-5/16"1-3/4"1-5/8"1-1/4"11/16"8-21/32"2-1/2"2-5/16"17"4-15/16"
16"21-3/16"3-3/4"2-1/8"1-7/8"1-1/2"13/16"10-1/8"2-3/4"2-11/16"19-1/8"5-7/16"
18"23-15/16"4-1/4"2-5/16"2-1/8"1-7/16"1-1/8"11-1/4"3"2-15/16"21-5/16"5-15/16"
20"27-1/16"4-3/4"2-11/16"2-3/8"1-3/4"1-7/16"13"3-1/8"3-7/16"24-1/4"6-9/16"
24"32-1/2"5-3/4"3-5/16"2-13/16"2-1/8"1-3/4"15-3/4"3-5/16"4-1/8"28-3/4"7-7/16"

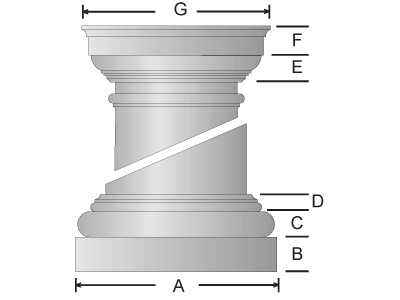

Doric Capital & Base

Doric Base Doric Capital
Plinth Torus Total Echinus Abacus Total
A B C D B-D E F G E-F
6"7-31/32"1-1/2"1"3/4"3-1/4"1"1-1/4"8"2-1/4"
8"10-7/8"1-7/8"1-7/16"15/16"4-1/4"1-7/16"1-1/2"10-1/4"2-15/16"
10"13-1/2"2-3/8"1-3/4"1-1/4"5-3/8"1-7/8"1-3/4"13"3-5/8"
12"16-1/8"2-3/4"2-1/16"1-3/8"6-3/16"2-1/8"2-3/8"15-1/8"4-1/2"
14"18-3/4"3-3/8"2-3/8"1-5/8"7-3/8"2-11/16"2-3/4"17-13/16"5-9/16"
16"21-1/2"3-7/8"2-7/8"2"8-3/4"3-3/16"3-1/8"20-5/16"6-5/16"
18"24"4-1/8"3-5/16"2-3/8"9-13/16"3-1/2"3-9/16"22-7/16"7-1/16"

Endura-Stone™ Column Plan Types

Endura-Stone Columns are as unique as the different types of installations that are available. We offer our Endura-Stone™ Columns in a wide variety of "Plan Types". These "Plan Types" are the style and type of shaft, capital, and base you will receive. If you are using them as half columns against a wall, you would want to select a "D" plan type for round or "F" plan type for square. This would give you a column that could be installed against a wall. These are the most common plan types, however, we can do custom plan types if your project requires it.



Column Splitting

Using a precision splitting template machine, columns can be divided in halves to be used as pilasters or to be reassembled around existing structural members. Columns designed for reassembly come with realignment splines and installation instructions.

Calculated Safe-Load Capacities

The sample columns tested supported loads at least four times the calculated value above prior to failure. The load was applied concentrically through the axis of the column. Loads shown are valid only if there is uniform contact between the full area of column ends and the cap & base units. Loads are provided for your convenience only and are not exact values. Consult a structural engineer for the most accurate load estimates.

*Concentric Load: A load which passes through the centroid of the cross section of a structural member and acts normal to the cross section.
**Eccentric Load: A load imposed on a structural member at some point other than the centroid of the section.

Safe-Load Capacities
Tapered Shafts Non-Tapered Shafts
Shaft Dia. *Concentric Load **Eccentric Load Shaft Dia. Concentric Load Eccentric Load
6"6,0006,0006"6,0006,000
8"10,0006,6008"10,00010,000
10"14,00010,72010"12,80011,520
12"18,00013,20012"18,00011,520
14"20,00011,52014"20,00017,320
16"20,00013,20016"20,00013,200
18"20,0009,04018"20,0009,040
20"20,00018,96020"20,00018,960
24"20,00013,20024"20,00013,200

Endura-Stone™ Tapered Ornamental Capitals



Empire
Capital Height Abacus Width Scroll Width Height Adjustment
6"3-1/8"9"8-3/4"-1"
8"3-3/4"10"9"-1"
10"5-1/2"16"13-1/2"-3/8"
12"6-1/4"18"17"+3/4"
14"7-1/4"20-1/4"19-1/2"-3/4"
16"8-3/4"23"19-1/2"+5/8"
18"10"32"26-1/4"+3/4"
20"11-1/4"34"28"+1-1/8"
24"12-3/4"35-1/2"35"-1/18"


Empire w/Necking
Capital Height Abacus Width Scroll Width Height Adjustment
6"6-7/8"9"8-3/4"+3-1/4"
8"7-3/4"10"9"+3-1/2"
10"10"13-1/2"12-1/4"+4-7/8"
12"11"18"17"+6-1/4"
14"14-1/2"20-1/2"19-1/2"+7-1/2"
16"17"23"19-1/2"+9-7/8"
18"15"32"26-1/4"+6-3/4"
20"17-1/4"34"28"+8-1/2"
24"19"35-1/2"35"+6-3/4"

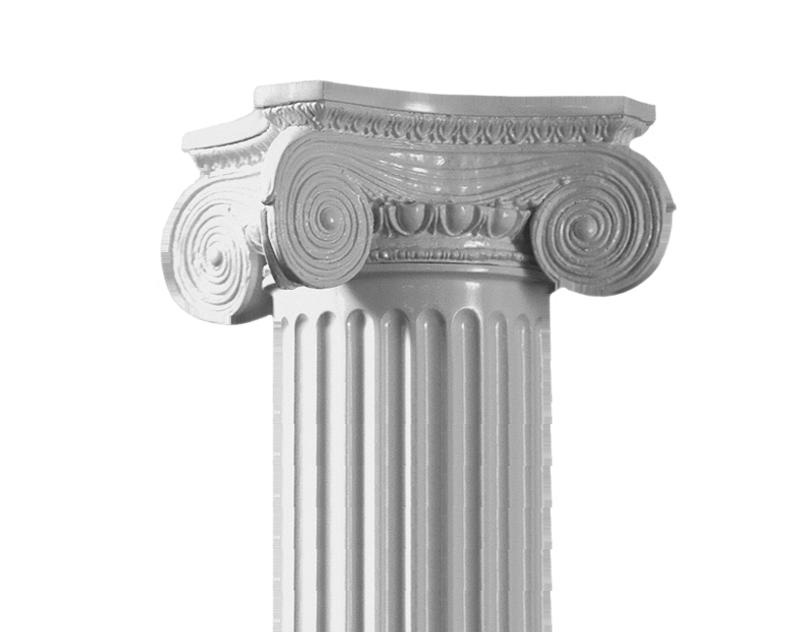

Greek Angular Ionic
Capital Height Abacus Width Scroll Width Height Adjustment
6"3-5/8"9-1/4"9"-1/2"
8"3-3/4"9-1/2"9"-1"
10"5-3/8"14-1/4"13-1/4"-1/2"
12"6"17-1/4"17"+1/2"
14"7-1/4"20-3/4"19-1/4"-3/4"
16"8-3/8"20-1/2"19-1/2"+1/4"
18"9-3/4"24-1/4"19-3/4"+1/2"
20"11"29-3/4"28"+7/8"
24"12-3/4"35"34-1/2"-1-1/8"

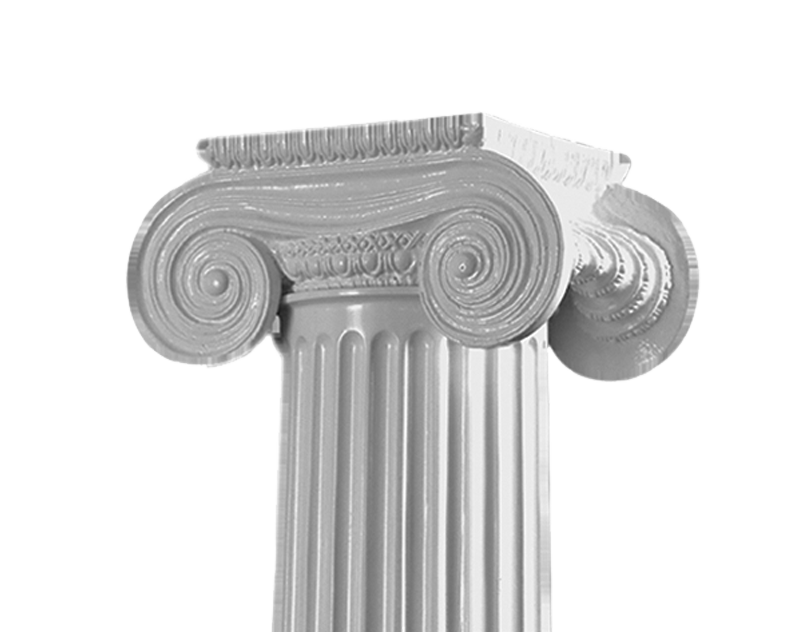

Greek Erectheum
Capital Height Abacus Width Scroll Width Height Adjustment
6"3-1/4"6-3/4"8-1/2"-7/8"
8"3-3/4"7-3/4"11-3/4"-1"
10"5-1/2"12"17-1/2"-3/8"
12"6-1/4"14-1/2"21"+3/4"
14"7"15"21"-1"
16"9"17-1/2"26"+7/8"
18"10-1/2"22"29"+1-1/4"
20"11"26"36"+7/8"
24"13"30-1/2"43"-7/8"
30"15"31"45-1/2"n/a

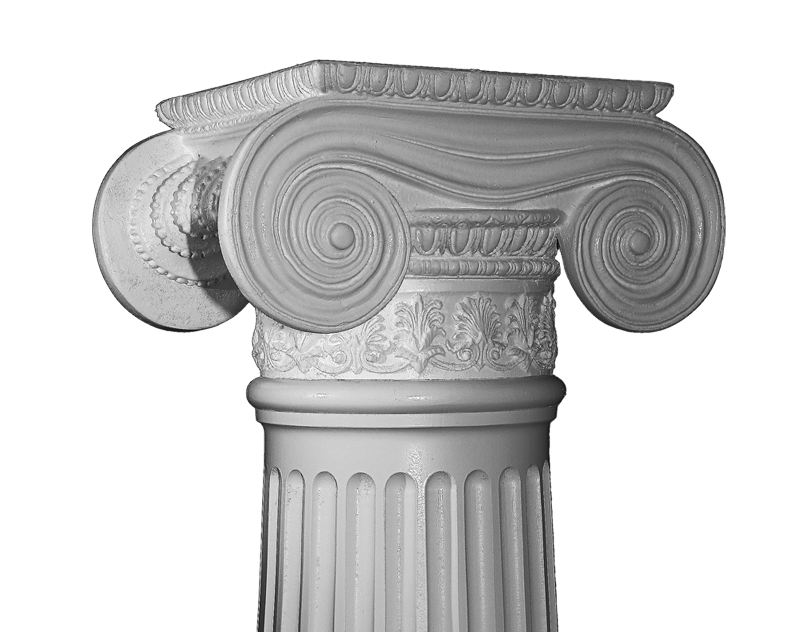

Greek Erectheum w/Necking
Capital Height Abacus Width Scroll Width Height Adjustment
6"5-3/4"7-3/4"11-3/4"+2-1/8"
8"7-1/2"10-1/2"15"+3-1/4"
10"8-1/2"12"17-1/4"+3-3/8"
12"9-1/2"14-1/2"21"+4-3/4"
14"11-1/4"15"21"+4-1/4"
16"13-1/2"17-1/2"26"+6-3/8"
18"15"22-1/2"29"+6-3/4"
20"17"26"36"+8-1/4"
24"19"30-1/2"43"+6-3/4"
30"24-3/4"31"45-1/2"n/a

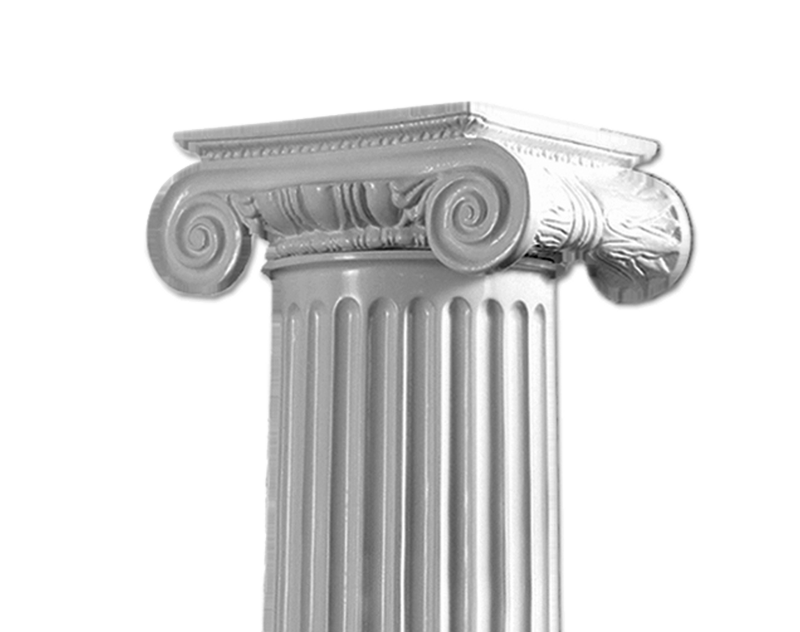

Roman Ionic
Capital Height Abacus Width Scroll Width Height Adjustment
6"2-1/4"6-1/8"8"-1-7/8"
8"3"8-1/4"10-1/2"-1-3/4"
10"3-5/8"11"13-5/8"-2-1/4"
12"4-1/2"12-1/2"16-1/2"-1"
14"5-1/2"17-1/2"23"-2-1/2"
16"6-1/8"17-1/2"22"-2"
18"6-1/2"20"24-1/4"-2-3/4"
20"8-3/4"25"31-3/4"-1-3/8"
24"9"25-1/4"33"-4-7/8"
30"12-1/2"32"40-1/2"n/a


Modern Composite
Capital Height Abacus Width Height Adjustment
6"7"8"+3-3/8"
8"8-1/2"10-3/4"+4-1/4"
10"12-1/4"16-1/2"+7-1/8"
12"14-1/2"19"+9-3/4"
14"17"20"+10"
16"n/an/an/a
18"22-1/2"25"+14-1/4"
20"22-1/2"25"+13-3/4"
24"n/an/an/a
30"n/an/an/a


Roman Corinthian
Capital Height Abacus Width Height Adjustment
6"7"9-1/2"+3-3/8"
8"10-1/4"12-3/4"+6"
10"13-7/8"17-3/4"+8-3/4"
12"15-1/2"18-1/2"+10-3/4"
14"17"22"+10"
16"20"27"+12-7/8"
18"23"32-1/2"+14-3/4"
20"25-1/2"39"+16-3/4"
24"28-1/2"42"+16-1/4"
30"37-1/2"46-1/2"n/a


Roman Doric Ornamental
Capital Height Abacus Width Height Adjustment
6"4"8-3/4"+1/8"
8"6"13-1/8"+1-1/4"
10"7"16-1/4"+1-1/8"
12"7"16-1/4"+1-1/2"
14"9"21"+1-1/4"
16"10-1/2"24"+2-1/8"
18"12-1/2"28"+3-5/8"
20"12-1/2"28"+2-3/8"
24"n/an/an/a
30"n/an/an/a

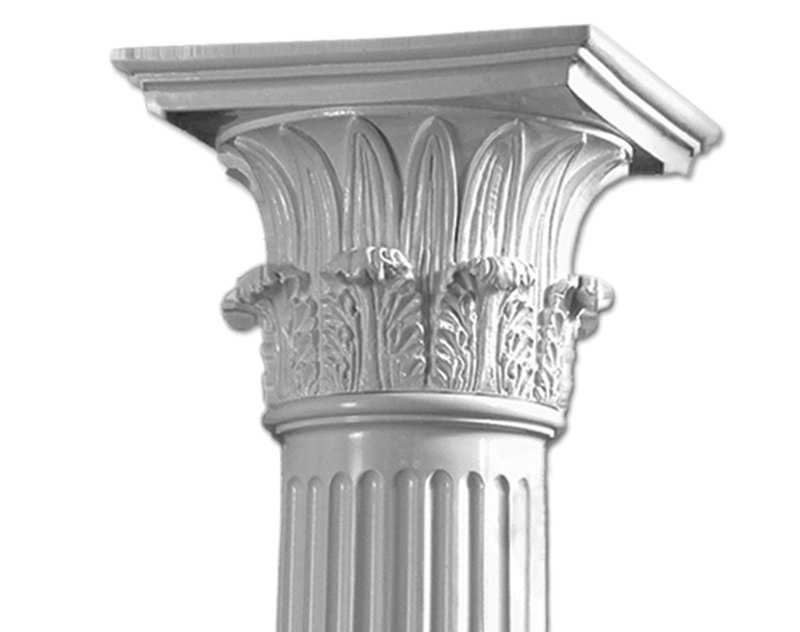

Temple of Winds
Capital Height Abacus Width Height Adjustment
6"7"8"+3-3/8"
8"8"12"+3-3/4"
10"11-1/8"15-1/4"+6"
12"13-3/4"17"+9"
14"14"21-1/4"+7"
16"16"23"+8-7/8"
18"18-1/8"26-3/4"+9-7/8"
20"21-1/4"28"+12-1/2"
24"23-1/4"34-1/4"+11"
30"30"39"n/a

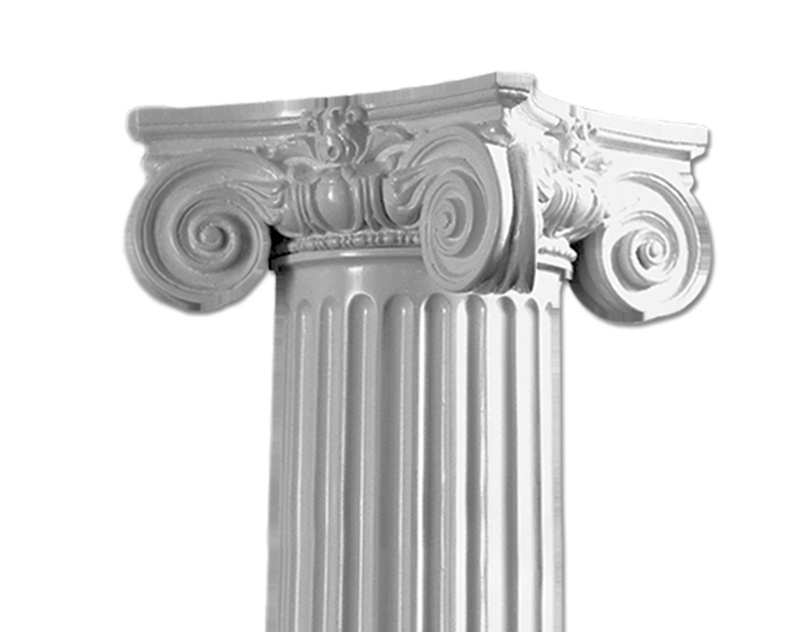

Scamozzi
Capital Height Abacus Width Scroll Width Height Adjustment
6"2-5/8"7-3/4"6-1/4"-1-1/2"
8"3"10-1/4"9"-1-3/4"
10"3-7/8"14-1/2"12-1/2"-2"
12"4-7/8"16-3/4"14"-5/8"
14"5-1/2"19"16-3/4"-2-1/2"
16"6-1/4"22-1/4"18-1/2"-1-7/8"
18"7"23-1/2"23"-2-1/4"
20"8-3/4"26"21-1/2"-1-3/8"
24"10-1/4"34-1/4"29-1/2"-3-5/8"
30"12-3/4"39"33"n/a

Beautiful Textures & Colors

We offer our columns in 3 different textures and six standard colors. However, if you would like a custom color, we can certainly do that. We have mixes that allow us to make columns in almost any colors.

Smooth Finish Paintable

Textured Finish White

Textured Finish Sandstone

Textured Finish Limestone

Textured Finish Off-White

Textured Finish Cliffside Grey

Textured Finish Cream

Coral Finish Off-White

Coral Finish Sandstone
