EnduraStone™ Square Columns

Endura-Stone™ Non-Tapered Square Columns

Presenting our Square Non-Tapered Endura-Stone™ Columns

Our selection of Endura-Series™ Square Columns includes this non-tapered model. Simply attractive, crisp and versatile, the square non-tapered column is currently used in countless applications. This early 1900's Arts and Crafts inspired column retains the simple and straightforward appearance of classic American millwork.

A high quality Endura-Stone™ construction makes the Endura-Series™ Square non-Tapered Column an excellent choice. This advanced material is easy to work with, and it retains traditional appeal to truly enhance your home. Endura-Stone™ is one of today's most advanced composite structural materials.

Endura-Series™ Square Non-Tapered Columns are hollow and ideal for concealing less than complimentary supports. They are also great for concealing unsightly plumbing and downspouts.

This versatile column is available in smooth, paneled, fluted and combination formats to meet your decorative needs. The Endura-Series™ Square Columns also feature a unique decorative base. The Pedestal base is available in a 8" diameter, and is base from the same material as the shaft, for an identical feel.

Square Non-Tapered Column Shafts

Endura-Stone™ columns are crafted in fiberglass reinforced polymer (FRP), an ultra-durable material for modern times. It is a great alternative to stone, one that surpasses concrete and steel in strength. For the look and feel of stone with advanced strength and endurance against weathering, choose Endura-Stone™.

Smooth and Fluted Shafts

Shaft Height Outside Inside Neck Height Astragal Flutes Fluting
A B C E D F G Flute Width
6"8'5-7/8"4-3/4"3-5/8"3/4"10-15/16"77-13/16"1/2"
8"8'7-7/8"5-3/4"4-1/2"3/4"10-15/16"77-13/16"11/16"
8"9'7-7/8"5-3/4"4-1/2"3/4"10-15/16"89-13/16"11/16"
8"10'7-7/8"5-3/4"4-1/2"3/4"22-15/16"89-13/16"11/16"
10"8'9-7/8"8-3/4"5-1/16"3/4"10-15/16"77-13/16"7/8"
10"9'9-7/8"8-3/4"5-1/16"3/4"10-15/16"89-13/16"7/8"
10"10'9-7/8"8-3/4"5-1/16"3/4"22-15/16"89-13/16"7/8"
10"12'9-7/8"8-3/4"5-1/16"3/4"n/an/a7/8"
12"8'11-7/8"10-3/4"4-1/2"3/4"10-15/16"77-13/16"1"
12"9'11-7/8"10-3/4"4-1/2"3/4"10-15/16"89-13/16"1"
12"10'11-7/8"10-3/4"4-1/2"3/4"22-15/16"89-13/16"1"
12"12'11-7/8"10-3/4"4-1/2"3/4"n/an/a1"
12"14'11-7/8"10-3/4"4-1/2"3/4"n/an/a1"
12"16'11-7/8"10-3/4"4-1/2"3/4"n/an/a1"

Raised and Flat Panel Shafts

Shaft Height Outside Inside Neck Height Astragal Panel Dimensions
A B C E D H I J K L M N
8"8'7-7/8"5-3/4"4-1/2"3/4"9-5/8"22-15/16"45-7/8"11-3/8"76-3/4"7-5/8"4-7/8"
8"9'7-7/8"5-3/4"4-1/2"3/4"9-5/8"26-15/16"53-7/8"11-3/8"88-3/4"7-5/8"4-7/8"
8"10'7-7/8"5-3/4"4-1/2"3/4"21-5/8"26-15/16"53-7/8"11-3/8"100-3/4"7-5/8"4-7/8"
10"8'9-7/8"8-3/4"5-1/16"3/4"n/an/an/a14-1/2"73-11/16"8-3/16"6-7/8"
10"9'9-7/8"8-3/4"5-1/16"3/4"n/an/an/a14-1/2"85-11/16"8-3/16"6-7/8"
10"10'9-7/8"8-3/4"5-1/16"3/4"n/an/an/a14-1/2"97-11/16"8-3/16"6-7/8"

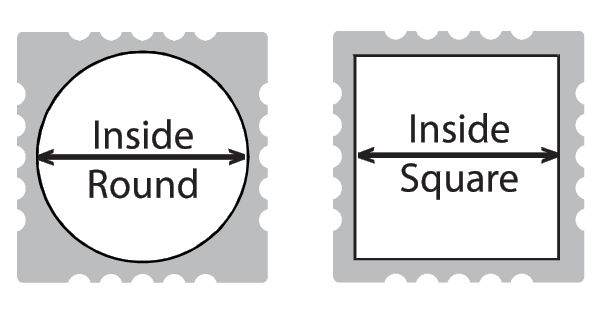

What size post will my column wrap?

*Adding Ornamental Caps will change the post size that can be wrapped. Please check with your consultant for details.

Non-Tapered*
Inside Round Inside Square
6"4-1/2"4-1/2"
8"5-1/2"5-1/2"
10"8-1/2"8-1/2"
12"10-1/2"10-1/2"

Endura-Stone™ Non-Tapered Capitals & Bases

Tuscan Capital & Base

Tuscan Base Tuscan Capital
Plinth Torus Total Echinus Abacus Total
A B C D B-D E F G E-F
6"8"1-1/2"1-1/4"1/2"3-1/4"1"1-1/16"8-7/16"2-1/16"
8"11-3/8"1-7/8"1-3/4"5/8"4-1/4"1-5/16"1-7/16"11-1/4"2-3/4"
10"13-1/2"2-3/8"2-1/8"3/4"5-1/4"1-13/16"1-3/4"13-1/4"3-9/16"
12"17"2-3/4"2-3/8"7/8"6"1-7/8"2"17-1/4"3-7/8"

Tuscan Capital & Attic Base

Attic Base Tuscan Capital
Plinth Torus Total Echinus Abacus Total
A B C D E F B-F E F G E-F
6"8"1"3/4"3/4"1/2"1/2"3-1/2"1"1-1/16"8-7/16"2-1/16"
8"10-7/8"1-7/8"1-1/8"7/8"3/4"1/2"5-1/8"1-5/16"1-7/16"11-1/4"2-3/4"
10"13-1/2"2-3/8"1-1/4"1-1/8"7/8"5/8"6-1/4"1-13/16"1-3/4"13-1/4"3-9/16"
12"17"2-3/4"1-1/2"1-3/8"1"5/8"7-1/4"1-7/8"2"17-1/4"3-7/8"

Pedestal Style Base

Bottom Width Total Height Bottom Center Platform Top Top Width
A B C D E F G
8"15"42-3/8"8-11/16"25-7/8"2-1/8"5-11/16"8-1/4"

Endura-Stone™ Column Plan Types

Endura-Stone Columns are as unique as the different types of installations that are available. We offer our Endura-Stone™ Columns in a wide variety of "Plan Types". These "Plan Types" are the style and type of shaft, capital, and base you will receive. If you are using them as half columns against a wall, you would want to select a "D" plan type for round or "F" plan type for square. This would give you a column that could be installed against a wall. These are the most common plan types, however, we can do custom plan types if your project requires it.



Column Splitting

Using a precision splitting template machine, columns can be divided in halves to be used as pilasters or to be reassembled around existing structural members. Columns designed for reassembly come with realignment splines and installation instructions.

Calculated Safe-Load Capacities

The sample columns tested supported loads at least four times the calculated value above prior to failure. The load was applied concentrically through the axis of the column. Loads shown are valid only if there is uniform contact between the full area of column ends and the cap & base units. Loads are provided for your convenience only and are not exact values. Consult a structural engineer for the most accurate load estimates.

*Concentric Load: A load which passes through the centroid of the cross section of a structural member and acts normal to the cross section.
**Eccentric Load: A load imposed on a structural member at some point other than the centroid of the section.

Safe-Load Capacities
Tapered Shafts Non-Tapered Shafts
Shaft Dia. *Concentric Load **Eccentric Load Shaft Dia. Concentric Load Eccentric Load
6"6,0006,0006"6,0006,000
8"10,0006,6008"10,00010,000
10"14,00010,72010"12,80011,520
12"18,00013,20012"18,00011,520
14"20,00011,52014"20,00017,320
16"20,00013,20016"20,00013,200
18"20,0009,04018"20,0009,040
20"20,00018,96020"20,00018,960
24"20,00013,20024"20,00013,200

Beautiful Textures & Colors

We offer our columns in 3 different textures and six standard colors. However, if you would like a custom color, we can certainly do that. We have mixes that allow us to make columns in almost any colors.

Smooth Finish Paintable

Textured Finish White

Textured Finish Sandstone

Textured Finish Limestone

Textured Finish Off-White

Textured Finish Cliffside Grey

Textured Finish Cream

Coral Finish Off-White

Coral Finish Sandstone
